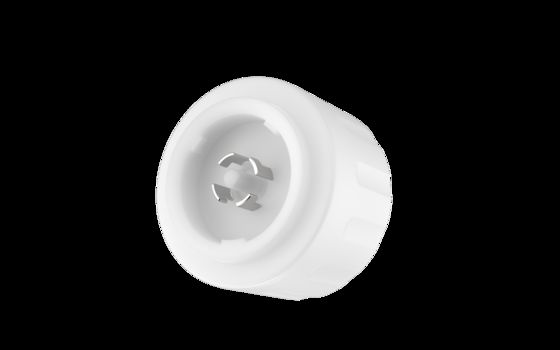

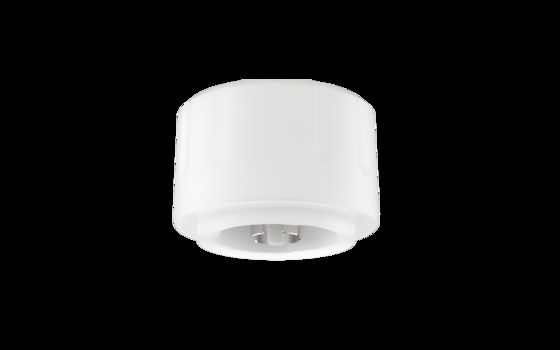

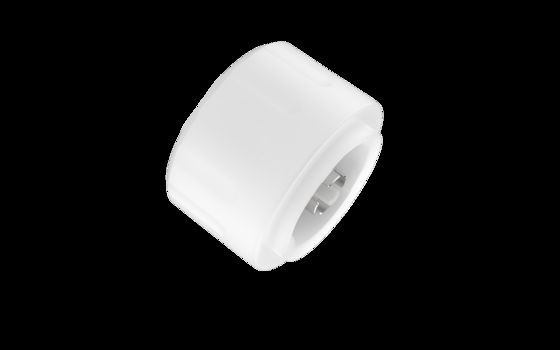

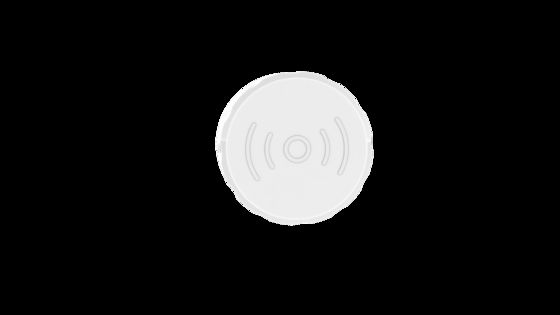

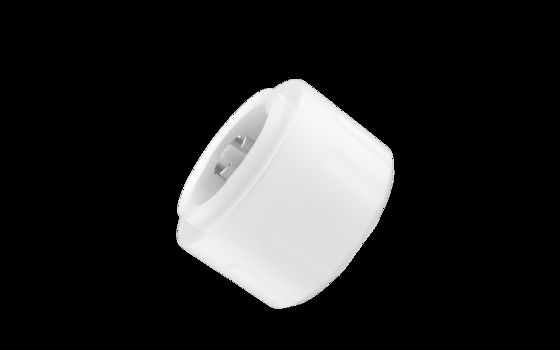

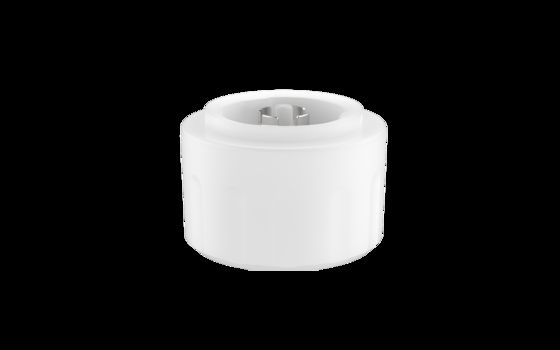

Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height

  • Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height
  • Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height
  • Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height
  • Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height
  • Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height
  • Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height
Miejsce pochodzenia Shenzhen, Chiny
Nazwa handlowa Merrytek
Orzecznictwo RED
Numer modelu MC079D 99 Z1
Minimalne zamówienie 100pcs
Cena Negocjowalne
Szczegóły pakowania Klapka + karton (K=A)
Czas dostawy <i>1, Sample and small order: Within 5 working days after receiving your payment.</i> <b>1, próbka i
Zasady płatności T/T
Możliwość Supply 10000 szt./Miesiąc

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Napięcie znamionowe 11-15 V prądu stałego Sygnał wyjściowy Sygnał ściemniający 0-10 VDC
Częstotliwość pracy 5,8 GHz ±75 MHz, pasmo ISM Wysokość instalacji 12 m (maks. 15 m)
Ocena IP IP65 Życie 5 lat gwarancji @TA
Podkreślić

Zhaga book 18 high bay sensor

,

microwave motion sensor with daylight priority

,

high bay sensor 15m mounting height
Zostaw wiadomość
opis produktu
Zhaga Book 18 High Bay Sensor
Daylight Priority Function With 15m Max Mounting Height
Product Features
  • Patented low impedance planar antenna; High-gain
  • Match Zhaga Book 18 base, plug in design
  • 15m maximum installation height, suitable for most warehouses
  • With mini sensor detector, which is suitable for high bay light
  • Low transmitting power, no harm to human
  • Support Remote Control to adjust parameters
  • Newly patent design sensor antenna with two detection mode: high sensitivity detection and interference immunity detection (suitable for installation environments with many metal reflective surfaces)
  • Not affected by temperature, humidity, noise, dust etc.
Technical Parameters
Input
Rated voltage 11-15VDC
Working current 25±3mA
Ripple voltage <100mVp-p
Output
Output signal 0-10VDC dimming signal
Sensor parameters
Working frequency 5.8GHz ±75MHz, ISM band
Transmitting power 3mW Max.
Daylight priority Switch ON: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux
Switch OFF: 150Lux/200Lux/300Lux
Stand-by DIM level 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50%(4.9-5.1V)
Detection range (radius) Ceiling installation 12m high: 0.3m/s≥4m, 1m/s≥3m; Test conditions: the product is set to 100% sensitivity
Installation height 12m (15m Max)
3dB beam angle 82°@XZ plane
95°@YZ plane
Environment
Working temperature -25~60℃
Storage temperature -40℃~80℃, humidity ≤85% (non-condensing)
Certification Standards
Certified RED
Environmental requirements Comply with RoHS 2.0, Reach requirement
IP Rating IP65
Other
Wiring Zhaga Book 18 connector
Installation requirements built-in installation
Packaging requirements Clapboard + Carton(K=A)
Net weight 40±3g
Lifetime 5 years warranty @Ta
Functions
ON-OFF function Stand-by Period be set to "0s"
2-step dimming Stand-by Period be set to "+∞"
3-step dimming Stand-by Period be set to "10s/1min/3min/5min/10min/30min"
Daylight priority Remote press DH Mode and Daylight Sensor be set to "5Lux/15Lux/30Lux/50Lux/100Lux/150Lux"
Daylight harvesting N/A
Product Information
  • Dimension (Unit:mm)
Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 0
  • Wiring, Function
Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 1 Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 2
Installation Instruction
Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 3 Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 4 Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 5
Note: When installing, please attention that the microwave antenna plane should not be covered by metal.
Detection Range
Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 6
Remote Controller
Zhaga book 18 High Bay Sensor, Daylight Priority Function With 15m Max Mounting Height 7
Initialization
  • Switch function / 3-step dimming function: the light will be turned on 100% brightness by the initial energizing sensor, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.
  • Two-phase dimming function: the light will turn on 100% brightness in the initial energizing sensor, and turn to low brightness 10 seconds later (the brightness set by stand-by dim level). During initialization, no external motion sensing signal will be detected.
Default Setting
  • Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
  • Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of sensor is close to the metal plate.
  • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc. Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • The detection distance of the sensor in the wall installation will be greatly increased compared with that in the ceiling installation. If wall installation is used, please reduce the sensitivity or contact us to confirm the use settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
  • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
  • The installation spacing between sensors is recommended to be greater than 3m, and the installation spacing between sensors and routers is recommended to be greater than 2m.
  • The installation height of the sensor product cannot exceed 15 meters, and the optimal height is 12 meters.
  • Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
  • Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may cause false trigger.
  • The antenna surface of microwave module should be away from input AC, output DC, rectifier bridge, transformer, switch tube and other high-power devices to avoid high frequency signals affecting the normal operation of microwave sensor's antenna.
  • Sensor with different 0-10V driver, low light effect may be different.
  • DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV; the load current should be greater than 50 mA.
  • For the new installation environment, it is recommended to first install and test 5pcs prototypes before bulk installation.
